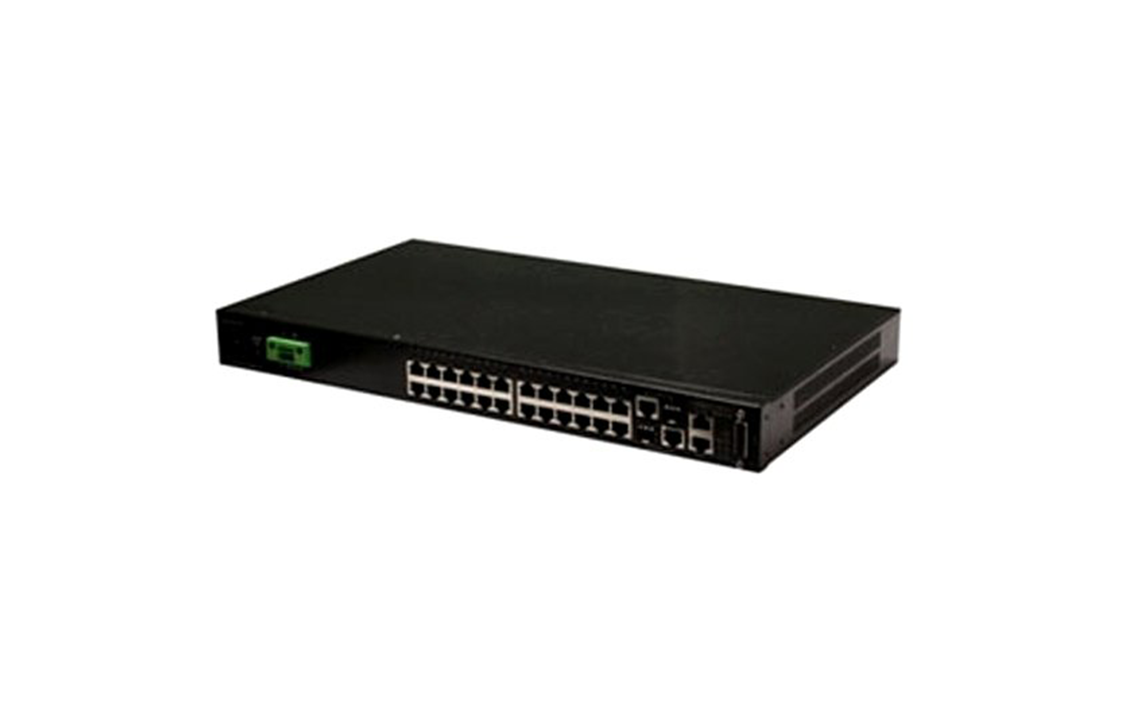

Коммутатор Edge-Core ECS3810-26T

Коммутатор ECS3810-26T L2/L4 уровня имеет 26 портов, из них 24 порта 10/100BASE-TX и 2 комбинированных порта - 1000Base-T/SFP slot. Все интерфейсы коммутатора включая порты управления, интерфейс прияма/передачи сигналов, разъемы питания расположены на лицевой части. Расширенный рабочий диапазон температур от -25С до +65С. Вентилятор отсутствует. Функция энергосбережения Green Ethernet.

Порты

• 24 порта 10/100Base-TX
• 2 комбинированных порта – 1000Base-T/SFP slot
• 1 порт RJ45 1000Mbps для управления
• 1 консольный порт RJ45
• 1 сигнальный порт DB15

Производительность

• Switching Capability: 52Gbps
• Packet Buffer Size: 8Mb
• MAC Address Table: 16K

L2 функции

• Tri-speed (10/100/1000Base-T) copper interfaces
• Auto-negotiation for port speed and duplex mode
• Dual-speed(100M and 1000M) fiber interfaces
• SFP port support changeable 1000Base-SX/LX/LHX/ZX transceiver
• Digital Diagnostic Monitoring (DDM)
• Flow Control:
• IEEE 802.3x for full duplex mode
• Back-Pressure for half duplex mode
• Spanning Tree Protocol:
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• BPDU Guard
• BPDU filtering
• Root Guard
• BPDU transparent
• Loopback detection
• ITU-T G.8032 Ethernet Ring Protection
• Sub 50msec convergence
• Revertive operation mode
• Multiple-ring network
• VLANs:
• Supports 4K VLAN
• Port-based VLAN
• IEEE 802.1Q VLAN
• IEEE 802.1v Protocol-based VLAN and Subnet –based VLAN
• MAC-based VLAN
• Traffic Segmentation
• GVRP
• L2 Virtual Private VLAN
• QinQ
• selec tive QinQ
• L2 Protocol tunneling (xSTP, CDP, VTP & PVST+)
• CDP/PVST+ Filtering
• Support Voice VLAN
• Link Aggregation:
• Static Trunk
• IEEE 802.3ad Link Aggregation Control Protocol
• Trunk groups: 12, up to 8 ports per group
• IGMP Snooping:
• IGMP v1/v2/v3 snooping
• IGMP Proxy reporting
• IGMP Filtering
• IGMP Throttling
• IGMP Immediate Leave
• IGMP Querier
• MVR (Multicast VLAN Registration)
• Support 5 Multicast VLAN
• Port Mirroring
• Supports jumbo frames up to 10KB

QoS функции

• Priority Queues: 8 hardware queues per port
• Traffic classification
• IEEE 802.1p CoS
• IP Precedence
• DSCP
• MAC Access control list ( Source/Destination MAC, Ether type, Priority
• ID/ VLAN ID )
• IP Standard access control list (Source IP)
• IP extended access control list (Source/Destination IP, Protocol,
• TCP/UDP port number)
• Traffic Scheduling
• Strict Priority
• Weighted Round Robin
• Strict + WRR traffic scheduling
• Weighted Random Early Detection
• Two rate Three color marker
• Ingress traffic policing
• Egress traffic shaping
• Marking/remarking
• Rate Limiting (Ingress and Egress, per port base)
• FE: Resolution 64Kbps ~ 1000Mbps
• Bundle Rate Control

Безопасность

• Port security
• IEEE 802.1X port based and MAC based authentication
• Dynamic VLAN Assignment, Auto QoS, Auto ACL
• MAC authentication, Web authentication
• Voice VLAN, Guest VLAN
• L2/L3/L4 Access Control List
• MAC Access control list ( Source/Destination MAC, Ether type,
• Priority ID/ VLAN ID )
• IP Standard access control list (Source IP)
• IP extended access control list (Source/Destination IP, Protocol,
• TCP/UDP port number)
• IPv6 ACL
• DHCP Snooping
• DHCP Option 82
• IP Source Guard
• Dynamic ARP Inspection
• PPPoE IA
• Login Security
• RADIUS authentication
• TACACS + authorization and accounting
• TACACS+ 3.0
• Management Security
• SSH (v1.5/v2.0) for security Telnet
• SSL for HTTPS
• SNMPv3

Размеры

• (W x D x H): 252 mm x 440 mm x 44 mm
• вес 3.08kg

Питание

• AC 110V ±10V, 60Hz ±3Hz
• DC -42V~-56V
• 22.1Watts maximum
